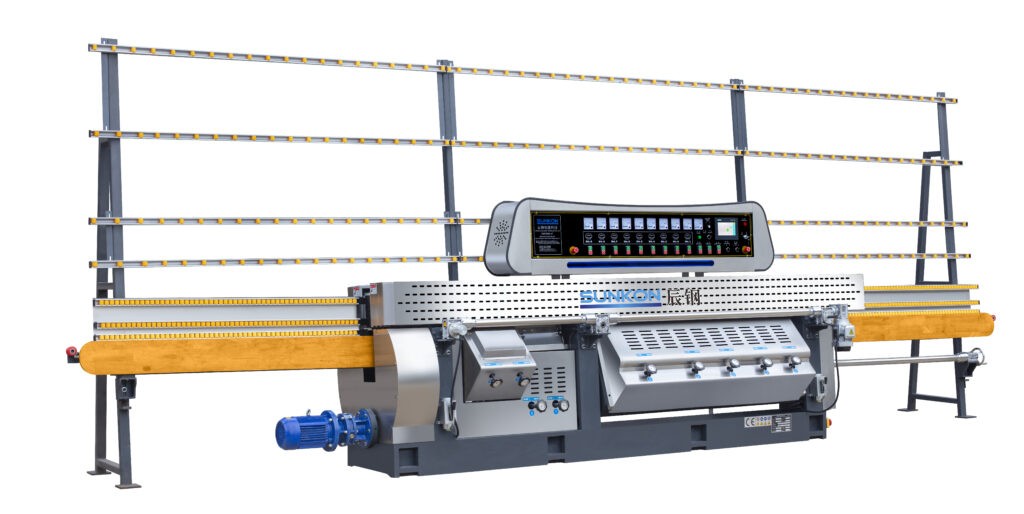

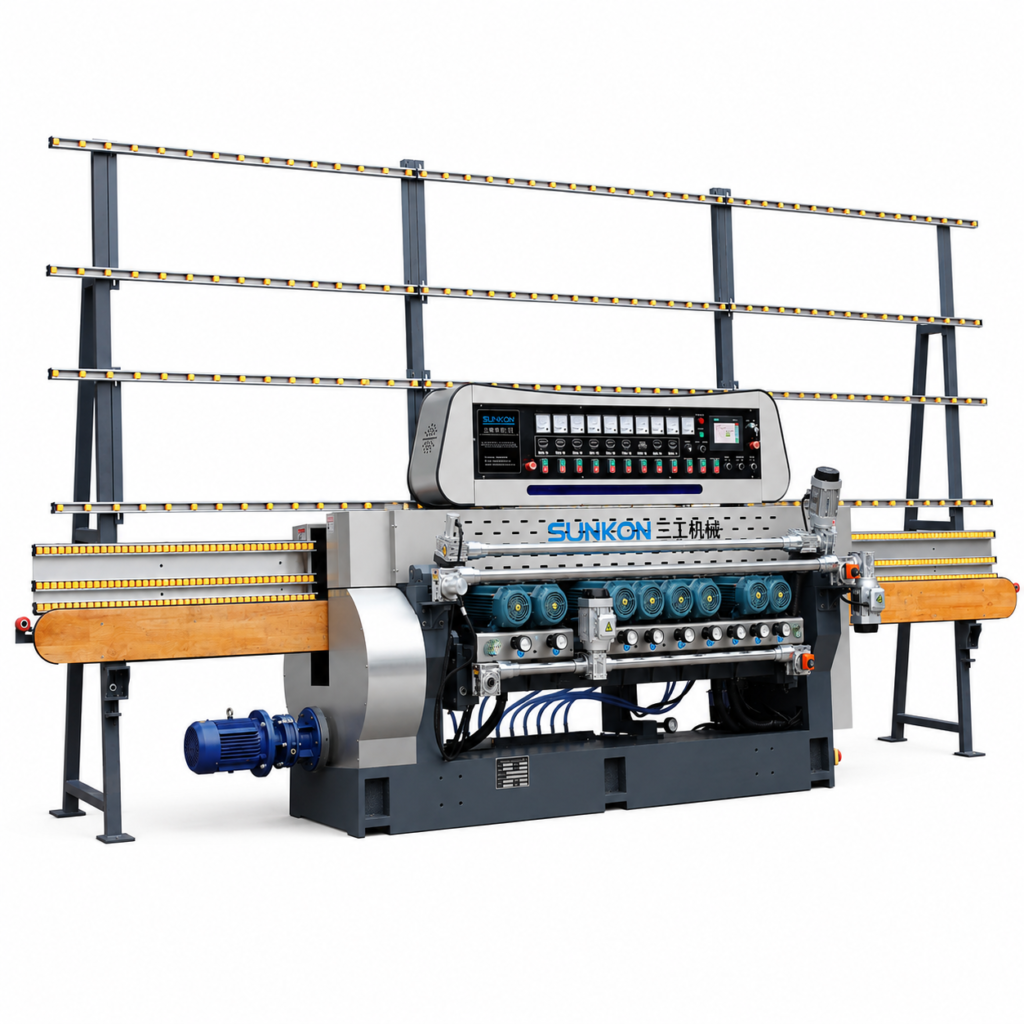

Glass Straight –Line Mitre Edging Machine (9 spindles)

Thickness of glass : 3-28mm

Edging upto : 5mm

Angles : 0°-45°

Min. size of glass : 100x100mm

Motor : 16 kw

Supply : 3ph 380v

Dimensions : 7000x1500x2500mm

Weight : 3500 kg

Controlled by manual operation

modes, adjust speed by stepless regulator. Rough

grinding, fine grinding, arris & polishing can be finish

at one time. The wheels on the moveable rack move 0°-45°, to process miter edging and arris.

Front arris wheels move along with the front beam synchronously for processing various

thickness of glass.
