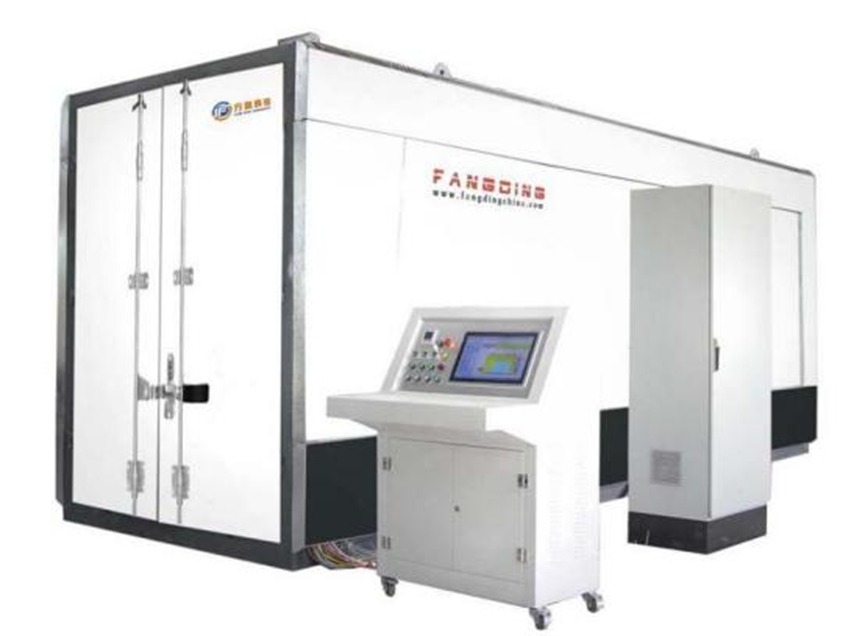

Heat Soak Furnace (Fangding)

Categories: Glass Machinery, Machinery

Product Specification

Core Function:

Reduces the risk of spontaneous breakage in tempered glass caused by Nickel Sulfide (NiS) inclusions by controlled heating and soaking.

Key Features:

Uniform Heating System:
- Finned heating tubes (often located at the top).
- Individual high power heating tubes (e.g., 6kW per tube).
- PID control for accurate temperature management.
- SSR (Solid State Relay) temperature control modules for precise temperature jumps (e.g., within ±3°C per minute at a single point).
Forced Hot Air Circulation: Ensures even temperature distribution within the furnace.
Precise Temperature Control:
- Intelligent control systems with HMI for easy operation.
- Multiple temperature monitoring points (thermocouples) on the glass surface and within the furnace (e.g., 16-21 points).
Computer Process Control System:
- Multi-temperature curve display.
- Real-time temperature monitoring.
- Customer information storage.
- Data recording (temperature curves stored frequently, e.g., every minute).
Adjustable Holding Time: Typically adjustable from 1 to 8 hours.
Safety Features: Complete safety programs and failure alarm functions.
Good Heat Preservation: Often features stainless steel lining and significant thermal insulation (e.g., 100mm) with seamless welding to minimize heat loss.
Air Duct Thermal Cycle: Unique air duct designs for efficient and stable heating.
Optional Features:
- WiFi remote monitoring.
- One-button printing for reports.
- Customizable sizes.
- Automatic glass loading and unloading systems in some production lines.

Typical Technical Parameters (Examples – Vary by Model):

Specification	Typical Range/Examples	Notes
Max Processing Glass Size	2000mm x 4500mm to 3000mm x 13000mm (and customized)	Varies significantly by model (JZ and FD-HF series mentioned)
Glass Thickness	3mm to 25mm (or 4mm to 25mm)
Max Permissible Temperature	Around 310°C to 340°C
Constant Time (Holding Time)	1 to 8 hours (adjustable)
Processing Capacity (KG/cycle)	3000 kg to 12000 kg (and higher for larger models)
Heating Power	Varies greatly by size (e.g., individual tubes up to 6kW)	Total power can range from tens to hundreds of kW.
Total Power	Example ranges: 259 kW to 821 kW (for specific models)	Depends on the size and heating capacity.
Temperature Evenness	±3°C to ±5°C	Important for meeting standards like EN 14179-1.
Number of Thermocouples	16 to 21 (or more)	For real-time monitoring of glass and furnace temperatures.
Control System	Siemens PLC (often)	With intelligent control and HMI.
Power Supply	Typically 3-phase AC (various voltages and frequencies)	E.g., 220V/380V/400V/415V/440V/480V, 50Hz/60Hz (refer to nameplate)
Dimensions & Weight	Varies significantly by model	Can range from several meters in length and weigh several tons.
