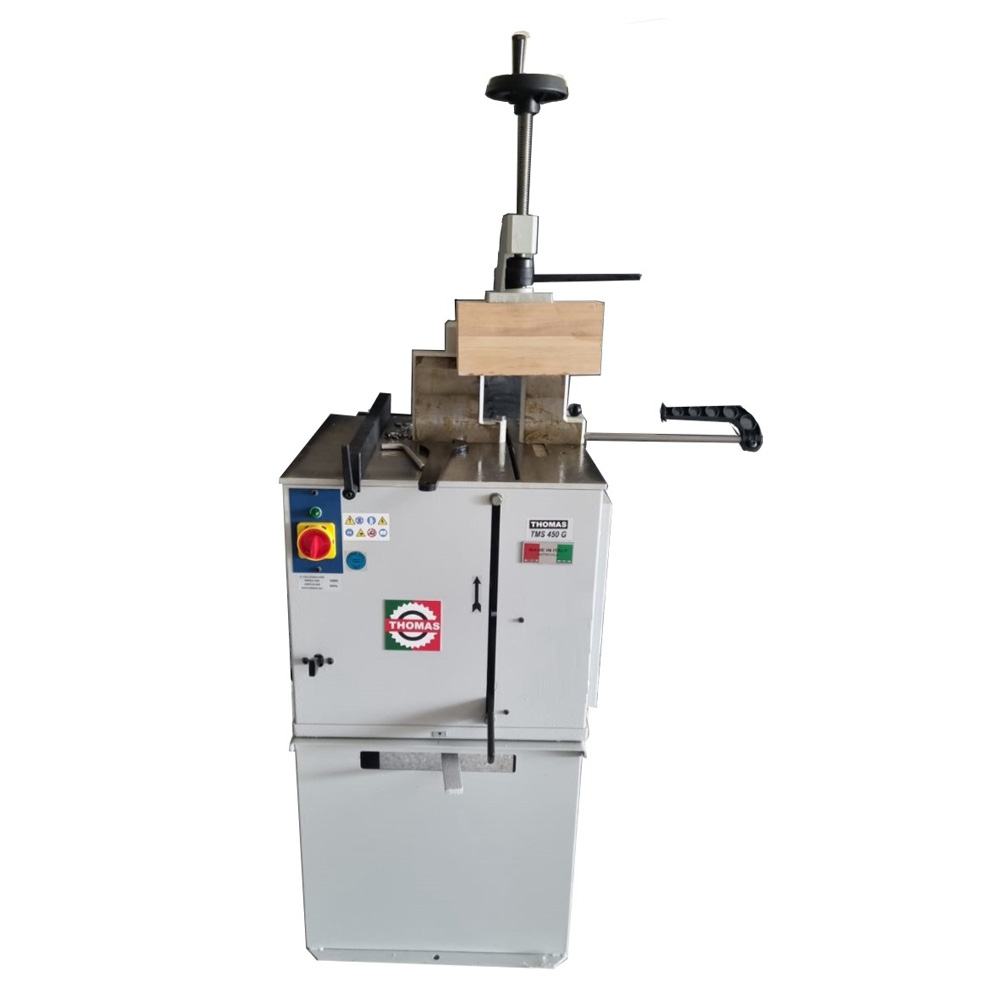

Cutting Off Machine, possibly an abrasive cut-off saw. Here’s a breakdown of the specifications to make it easier to understand:
Technical Data:
- Electric Motor: 2.2 kW (3.0 HP) – This indicates a powerful motor suitable for handling various cutting tasks.
- Blade Shaft Revolution: 3000 RPM – This high rotational speed allows for clean and fast cuts.
- Max Blade Size: 450 mm – This specifies the diameter of the largest blade the machine can accommodate.
- Weight with Pedestal: 145 kg – The weight signifies a sturdy machine construction for stable operation.
- Package Dimension: 700 x 750 x 1130 mm – This provides the size of the packaged machine for transportation and storage purposes.
Specifications:
- Head and Vice Revolving: The cutting head and vice can swivel left and right from 0° to 45°. This allows for miter cuts at various angles.
- Motor Guard: Ensures operator safety by enclosing the saw blade.
- Device for Parallel Cut: This feature likely refers to a rip fence or similar mechanism that helps maintain a straight and parallel cutting line.
- Quick Lock Vice: Enables fast and easy clamping of the workpiece for secure cutting.
- Pedestal in Steel Plate: Provides a solid and stable base for the machine.
