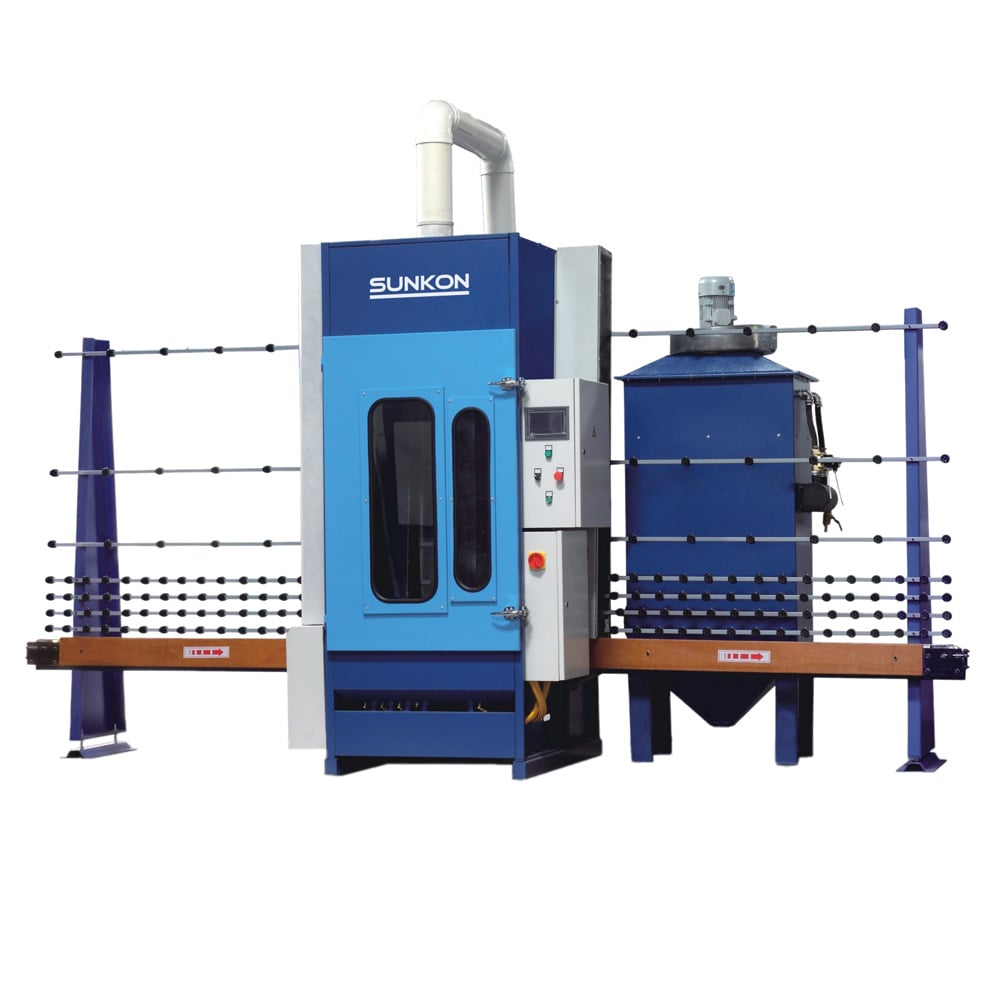

This report provides a comprehensive overview of the YH-3000P glass blasting machine, highlighting its specifications, features, and potential applications.
General Specifications:
- Model: YH-3000P
- Function: Glass Blasting (Automatic & Manual)
- Max Glass Size: 2000x3000mm (78.7″ x 118.1″)
- Blasting Speed: 10-15 m²/h (107.6 – 161.4 ft²/h)
- Motor Power: 3.5 kW
- Dimensions (L x W x H): 4800 x 1500 x 2280 mm (15.7′ x 4.9′ x 7.5′)
- Weight: 950 kg (2,094 lbs)
Features:
- Automatic and Manual Operation: Provides flexibility for different blasting needs.
- 3 Automatic Spray Guns: Enables efficient, large-scale blasting in automatic mode.
- 1 Manual Spray Gun: Offers precise control for detailed work or touch-ups.
- Special Material Spray Gun Nozzles: Enhances nozzle durability and extends service life.
Applications:
The YH-3000P glass blasting machine is suitable for various glass processing applications, including:
- Surface preparation for adhesion (e.g., frosting glass for decorative films)
- Creating decorative effects like frosted or etched glass patterns
- Removing surface contaminants such as paint, stains, or light scratches
- Roughening glass surfaces for improved bonding with other materials
Additional Considerations:
- Blasting Media: The appropriate blasting media type and size will depend on the desired blasting effect and glass thickness.
- Safety: Proper personal protective equipment (PPE) is crucial during operation, including safety glasses, gloves, and respirators.
- Dust Collection: A dust collection system is recommended to maintain a clean working environment and minimize dust exposure.
